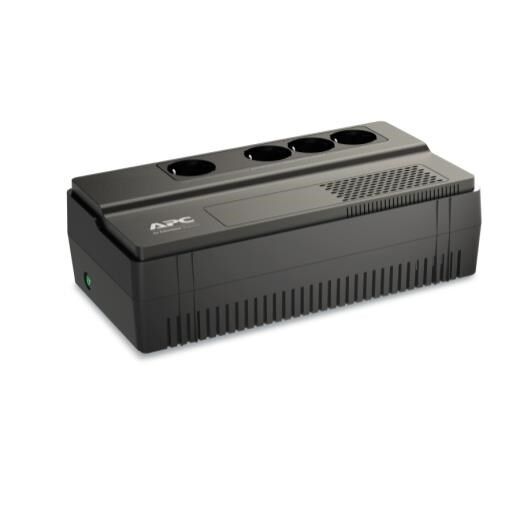

APC 500VA BVS500I-GR LINE INTERACTIVE UPS
Output
Max Configurable Power (Watts)
300 Watts / 500VA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Unsynchronised
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
170 - 280V
Number of Power Cords
1
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
12 V
Expected Battery Life (years)
3 - 5
Efficiency
Surge Protection and Filtering
Surge energy rating
156Joules
Physical
Maximum Height
93MM, 9.25CM
Maximum Width
161MM, 16.05CM
Maximum Depth
305MM, 30.5CM
Net Weight
3.9KG
Shipping weight
4.2KG
Shipping Height
237MM, 23.7CM
Shipping Width
373MM, 37.3CM
Shipping Depth
143MM, 14.3CM
Color
Black
SCC Codes
10731304338281
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 90 %
Operating Elevation
0 - 2032.1meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 90 %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP20
Conformance
Approvals
CE
Standard warranty
2 years repair or replace
