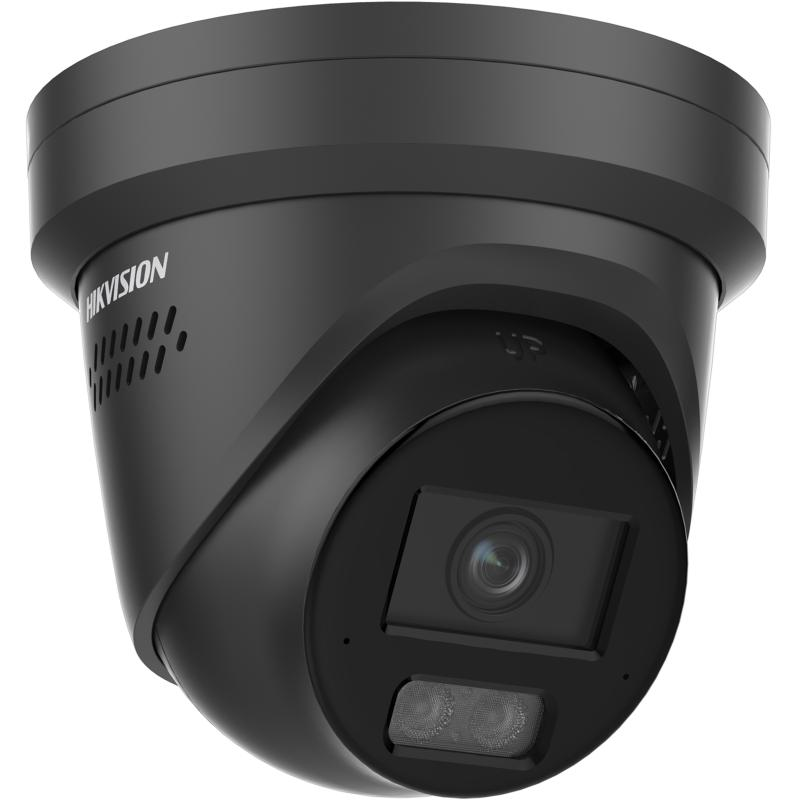

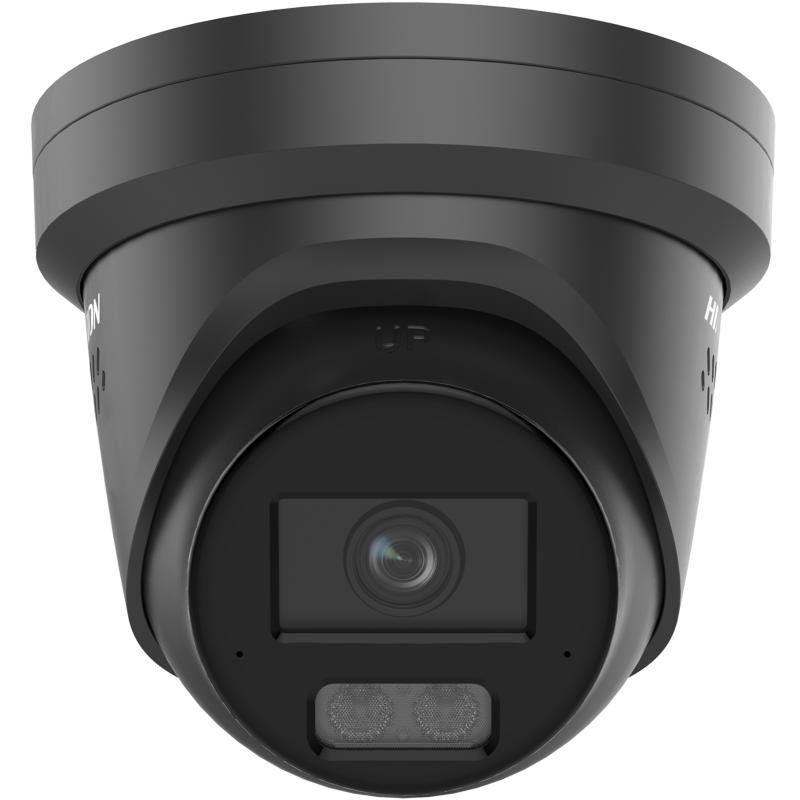

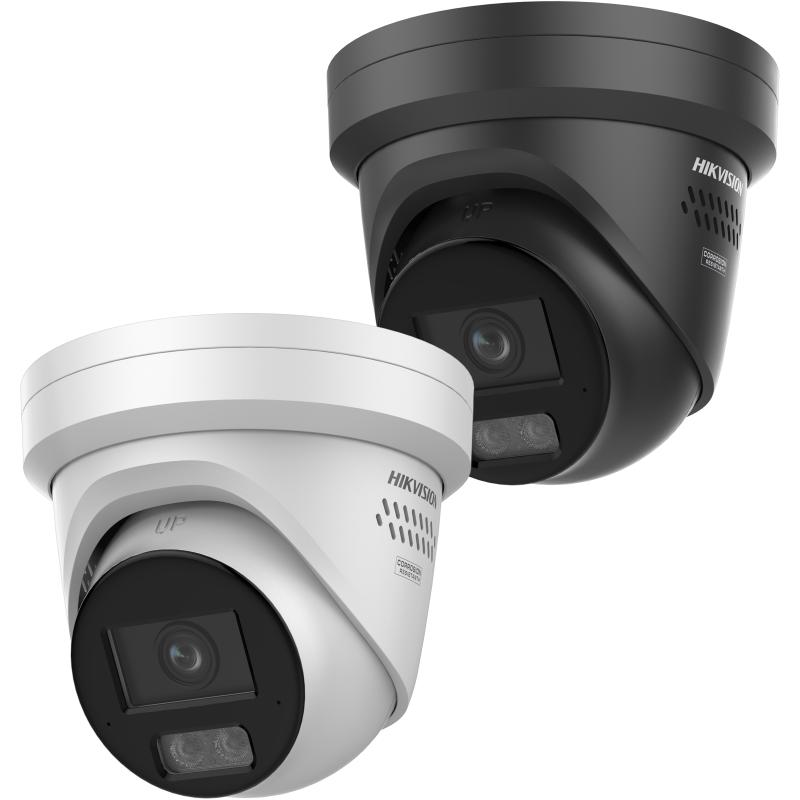

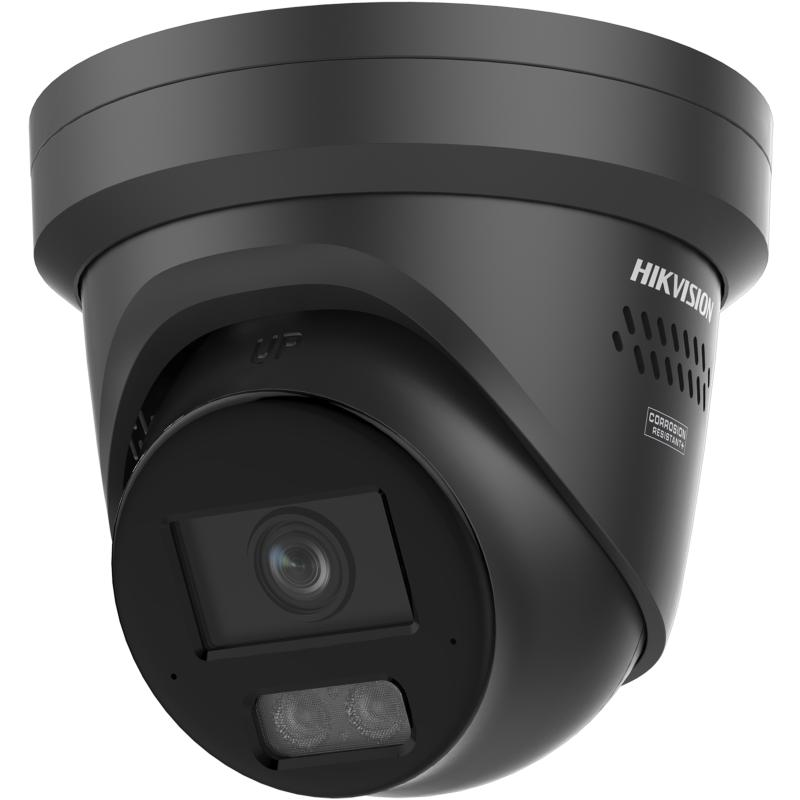

HIKVISION 8MP Dome 2.8-4mm ColorVu IP Kamera Sesli DS-2CD2387G3-LIS2UY/SL

DS-2CD2387G3-LIS2UY/S(L)

8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

• Mükemmel gürültü azaltma etkisi için HikaI-ISP
• ColorVu teknolojisi ile 7/24 renkli görüntüleme
• Sahneye uyarlanabilir WDR
• Derin öğrenmeye dayalı Kişi ve Araç sınıflandırmasına odaklanın
• Gerçek zamanlı yüksek kaliteli ses güvenliği için dahili dizili çift mikrofon
• Yerleşik iki yönlü ses aracılığıyla gerçek zamanlı güvenlik sağlayın
• Korozyon önleyici tasarım, standart (NEMA4X) ile karşılaştırıldığında güvenilirlik ve uzun ömür sağlar
• Akıllı Hibrit Işık: IR ve Beyaz ışıkları entegre eder, 3 ek aydınlatma modu
• Suya ve toza dayanıklı (IP67)
• Ses ve alarm arayüzü mevcuttur
• Davetsiz misafirleri uyarmak için aktif flaş ışığı ve sesli alarm

• Kamera
• Görüntü Sensörü1/1,8" Aşamalı Tarama CMOS'u
• Maks. Çözünürlük3840 × 2160
• Min. AydınlatmaRenk: 0,0005 Lux @ (F1.0, AGC ON),0 Işıklı Lux
• Deklanşör Zamanı1 ila 1/100.000 s
• Gündüz ve GeceIR kesme filtresi
• Açı AyarıPan: 0° ila 360°,tilt: 0° ila 75°,rotat: 0° ila 360°
• Lens
• Lens TürüSabit odak lens, 2,8 ve 4 mm isteğe bağlı
• Odak Uzunluğu ve FOV
• Lens DağıM16
• İris TipiSabitlenmiş
• DiyaframF1.0
• Alan Derinliği
• DORI
• DORI
• Aydınlatıcı
• Supplement Işık TipiBeyaz Işık, IR
• Supplement Işık Aralığı30 m'ye kadar
• Akıllı Supplement IşıkEvet evet
• IR Dalga Boyu850 nm
• Video
• Ana Akım
• Alt Akış
• Üçüncü Akış
• Video Sıkıştırma
• Video Bit Hızı32 Kbps ila 16 Mbps
• H.264 TipiTemel Profil, Ana Profil, Yüksek Profil
• H.265 TipiAna Profil
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream
• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser
• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
• SNR? 52 dB
• Wide Dynamic Range (WDR)130 dB
• Image StabilizationEIS
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
• Audio
• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventScene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
• Deep Learning Function
• Face CaptureYes
• Perimeter Protection
• General
• Power
• MaterialCover: metal, main body: metal
• DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• WeightApprox. 820 g (1.8 lb.)
• With Package WeightApprox. 1200 g (2.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
• Dil33 dil: İngilizce, Rusça, Estonca, Bulgarca, Macarca, Yunanca, Almanca, İtalyanca, Çekçe, Slovakça, Fransızca, Lehçe, Felemenkçe, Portekizce, İspanyolca, Romence, Danca, İsveççe, Norveççe, Fince, Hırvatça, Slovence, Sırpça, Türkçe, Korece, Geleneksel Çince, Tayca, Vietnamca, Japonca, Letonca, Litvanca, Portekizce (Brezilya), Ukraynaca
• Yanıp Sönen Işık
• Onay
• EMC
• Güvenlik
• ÇevreCE-RoHS: 2011/65/AB
• KorumaIP67: IEC 60529-2013
• Korozyon Önleyici KorumaNEMA 4X (NEMA 250-2018)

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1:2014/A11:2017

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32:2015,

IC: ICES-003: Sayı 7,

KC: KN32: 2015, KN35: 2015

/SRB modeli: Kırmızı ve Mavi Işık

/SL modeli: Beyaz Işık

12 VDC ± 25%, 1.29 A, max. 15.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 17 W

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Built-in Microphone: -2U: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,

Local service: Chrome 80+, Firefox 80+, Edge 89+

Up to 32 users

3 user levels: administrator, operator, and user

Ana akış: H.265/H.264/H.264+/H.265+,

Alt akış: H.265/H.264/MJPEG,

Üçüncü akış: H.265/H.264,

*Üçüncü akış belirli ayarlar altında desteklenir.

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 480, 640 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 480, 640 480, 640 360)

*Üçüncü akış belirli ayarlar altında desteklenir.

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (3840 × 2160,3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

2,8 mm: D:89 m, O:35 m, R:17 m, I:8 m

4mm: D:109m, O:43m, R:21m, I:10m

2,8 mm: 3,3 m ila ?

4mm: ?'ye 3,8m

2,8 mm, yatay FOV 108,8°, dikey FOV 56,4°, çapraz FOV 134,3°

4 mm, yatay FOV 93.3°, dikey FOV 47.2°, çapraz FOV 114.2°
