HP Z2 G9 5F163EA CORE i7 13700-128GB DDR5 RAM-512GB NVME-W11 PRO

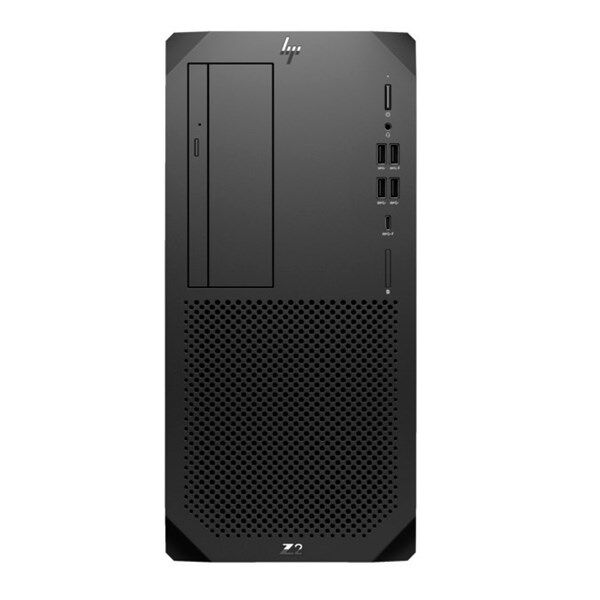

HP Z2 Tower G9 Workstation (5F163EA)
| Operating system |
Windows 11 Pro 1 |
|---|---|
| Processor family |
13th Generation Intel® Core™ i7 processor |
| Processor |
Intel® Core™ i7-13700 (up to 5.2 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 16 cores, 24 threads) 2 3 |
| Chipset |
Intel® W680 |
| Graphics |
Integrated, Intel® UHD Graphics 770 |
| Memory |
16 GB DDR5-4800 MHz RAM (1 x 16 GB)
|
| Memory Slots |
4 DIMM |
| Internal Storage |
512 GB HP Z Turbo Drive PCIe® NVMe™ TLC M.2 SSD
|
| Minimum dimensions (W x D x H) |
35.6 x 16.9 x 38.5 cm (Standard tower orientation.) |
| Weight |
Starting at 7.2 kg (Exact weight depends on configuration.) |
| Software included |
HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
| Management features |
HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download) 4 |
| Keyboard |
HP Wired Desktop 320K Keyboard |
| Audio |
Realtek ALC3205-VA2-CG, 2.0W internal mono speaker |
| Pointing device |
HP Wired 320M Mouse |
| Expansion slots |
1 PCIe 3 x4 (x16 connector); 1 PCIe 3 x4 (x4 connector); 1 PCIe 3 x1 (x4 connector); 1 PCIe 5 x16 (x16 connector); 1 M.2 2230 PCIe 3 X1 for WLAN (1 M.2 2230 slot for WLAN and 3 M.2 2280 slots for storage) |
| Ports |
Front 4 SuperSpeed USB Type-A 10Gbps signaling rate (1 charging); 1 universal audio jack Rear 1 audio-in; 1 audio-out; 1 RJ-45; 2 DisplayPort™ 1.4; 2 SuperSpeed USB Type-A 10Gbps signaling rate; 1 SuperSpeed USB Type-A 5Gbps signaling rate; 3 USB Type-A 480Mbps signaling rate
|
| Internal drive bays |
One 2.5" HDD; Two 3.5" HDD; Three M.2 NVME 2280 SSD |
| External drive bays |
One slim ODD; One 5.25" ODD |
| Power |
700 W 92% efficient, wide-ranging, active PFC |
| Security management |
HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 5 6 7 8 9 10 11 12 13 |
| Sustainable impact specifications |
Ocean-bound plastic in speaker enclosure; 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus® Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal |
| Manufacturer Warranty |
3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
