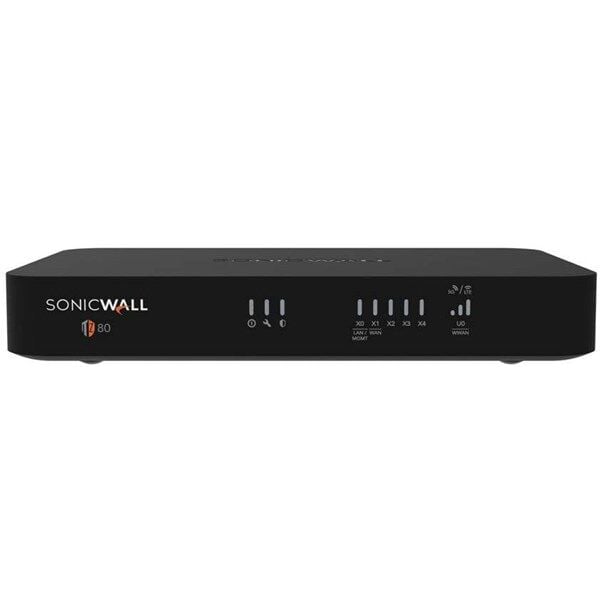

SONICWALL TZ80 03-SSC-3031 Sec Upgrade Advance Edt 3yıl Lisans 4x1G, 1xSFP, 1xUSB,1xTypeC Firewall 750mbps
SONICWALL
SONICWALL marka etiketine sahip diğer ürünler
40.313,56 TL
%3 Havale İndirimi
General
Device Type
Device Type Width Depth Height Weight
Security appliance 200.3 mm 113.6 mm 30.2mm, 0.438Kg
Networking
Form Factor External
Number of Ports 5 (4x1G Ethernet + 1 xSFP)
Connectivity Technology Wired
Network Management Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs
Network / Transport Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS,
IEEE 802.3
Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Performance Firewall: 750 Mbps
Threat Prevention: 750 Mbps
Application Inspection: 750 Mbps
Intrusion Prevention System (IPS): 750 Mbps
Anti-malware throughput: 750 Mbps
TLS/SSL Inspection & Encryption (DPI SSL): 250 Mbps
IPSEC VPN: 750 Mbps
Technical Specification Highlights
5 | SonicWall TZ80 SOHO
SonicWall TZ80 Specifications
Firewall General
Operating System SonicOS
Interfaces 4 * 1GbE Cu,
1*1G SFP, 1 console, 1 USB (USB type-C or USB type-A)
Management Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs
Single Sign-On (SSO) Users 250
VLAN interfaces 64
Access Points Supported (Maximum) 2
Firewall/VPN Performance
Firewall inspection throughput 750 Mbps
Threat prevention throughput 750 Mbps
Application inspection throughput 750 Mbps
IPS thoughput 750 Mbps
Anti-malware inspection throughput 750 Mbps
TLS/SSL inspection and encryption throughput (DPI SSL) 250 Mbps
IPSEC VPN throughput 750 Mbps
Connections per second 7500
Maximum connections (SPI) 300000
Maximum connections (DPI) 75000
Maximum connections (DPI SSL) 10000
VPN
Site-to-site VPN tunnels 50
IPSec VPN clients (maximum) 1(5)
SSL VPN licenses (maximum) 1(5)
Encryption/authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for
SonicWall-to- SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant
VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows 10 and Windows 11
NetExtender Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect Apple® iOS, Mac OS X, Google® Android™
Security Services
Deep Packet Inspection Services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)
HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive
filtering based on file types such as
ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service Yes
Application Visualization Yes
Application Control Yes
Capture Advanced Threat Protection Yes
DNS Filtering Yes
Cloud Secure Edge
Secure Private Access Yes
Networking
6 | SonicWall TZ80 SOHO
IP address assignment Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server,
DHCP relay
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT,
transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP
marking, 802.1e (WMM)
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user
database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 150
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE,
L2TP, PPTP, RADIUS, IEEE 802.3
Certifications Pending : CSfC
High availability Active/Standby with stateful synchronization
Hardware
Form Factor Desktop
Power supply 36W
Maximum power consumption (W) 11.6W
Input power 100-240 VAC, 50-60Hz, 3A
Total heat disipation (BTU) 39.6
Dimensions 200.3 x 113.6 x 30.2 (mm)
Weight 0.438 Kg
WEE weight 0.755 Kg
Shipping weight 0.973 Kg
MTBF @26°C in years 64.3
Environment(Operating/Storage) 0°C to ~+ 40°C / -40°C to ~ +70°C
Humidity 5-95% non-condensing
Regulatory
Major regulatory compliance (wired models)
FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), RCM, VCCI Class B, UL,
cUL, CB, Mexico DGN by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL,
TEC/MTCTE
Regulatory Model Numbers
TZ80 APL69-11B
SonicWall, Inc.
1033 McCarthy Boulevard | Milpitas, CA 95035
Refer to our website for additional information.
www.sonicwall.com
© 2024 SonicWall Inc. ALL RIGHTS RESERVED.
SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in the U.S.A. and/or other countries. All other trademarks and registered trademarks are property of their
respective owners. The information in this document is provided in connection with SonicWall Inc. and/or its affiliates’ products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of SonicWall products. Except as set forth in the terms and conditions as specified in the license agreement for this
product, SonicWall and/or its affiliates assume no liability whatsoever and disclaims any express, implied or statutory warranty relating to its products including, but not limited to, the implied warranty
of merchantability, fitness for a particular purpose, or non- infringement. In no event shall SonicWall and/or its affiliates be liable for any direct, indirect, consequential, punitive, special or incidental
damages (including, without limitation, damages for loss of profits, business interruption or loss of information) arising out of the use or inability to use this document, even if SonicWall and/or its
affiliates have been advised of the possibility of such damages. SonicWall and/or its affiliates make no representations or warranties with respect to the accuracy or completeness of the contents of
this document and reserves the right to make changes to specifications and product descriptions at any time without notice. SonicWall Inc. and/or its affiliates do not make any commitment to update
the information contained in this document.
About SonicWall
SonicWall is a cybersecurity forerunner with more than 30 years of expertise and a relentless focus on its partners. With the
ability to build, scale and manage security across the cloud, hybrid and traditional environments in real time, SonicWall can
quickly and economically provide purpose-built security solutions to any organization around the world. Based on data from
its own threat research center, SonicWall delivers seamless protection against the most evasive cyberattacks and supplies
actionable threat intelligence to partners, customers and the cybersecurity community.
354.24 - Datasheet - TZ80
SonicWall TZ80 Subscriptions and Service Suites
Feature Secure Connect Advanced Protection
Service Suite
Managed Protection
Service Suite*
24x7 Solution Support Yes Yes Yes
Centralized Management & Orchestration Yes Yes Yes
Layer 4/7 Stateful Firewall Yes Yes Yes
SD-WAN & Advanced Routing Yes Yes Yes
Intrusion Detection & Prevention Yes Yes
Content & Reputation Based Filtering Yes Yes
Capture ATP Sandboxing Yes Yes
DNS Filtering Yes Yes
Full Reporting
7-Day
(Extendable to 30, 90, 365
days)
30-day
(Extendable to 90, 365 days)
Advanced Analytics
7-Day
(Extendable to 30, 90, 365
days)
30-day
(Extendable to 90, 365 days)
Embedded Warranty by Cysurance $100,000 $200,000
24x7 Managed Firewall & Enhanced Support Yes
