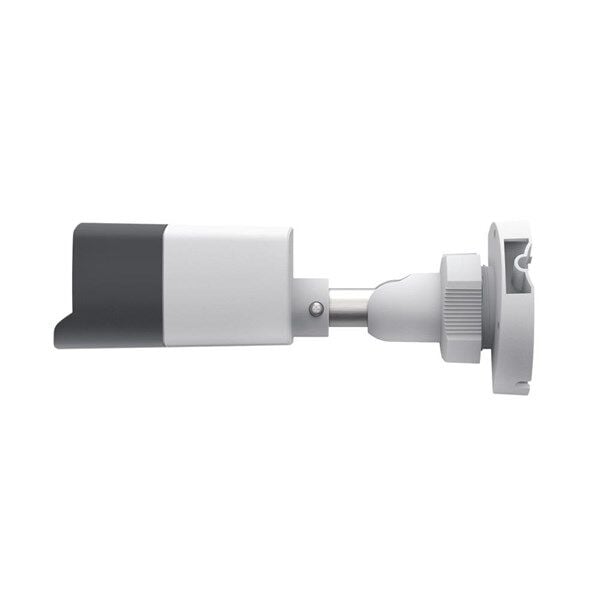

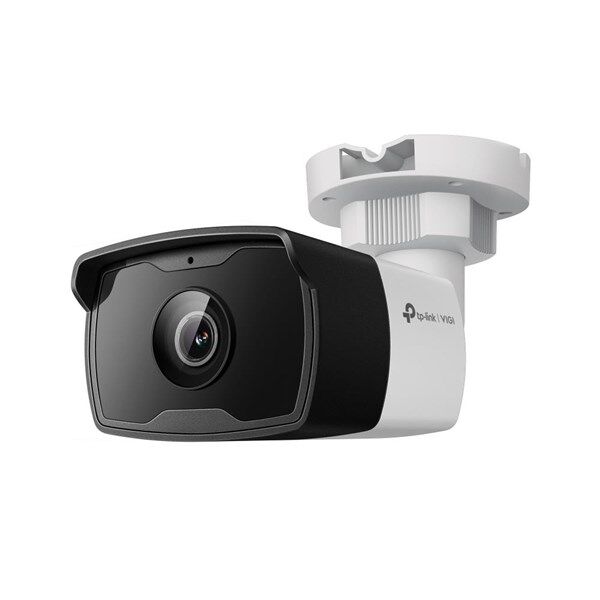

TP-LINK 4MP VIGI VIGI-C340I-4MM BULLET IP KAMERA
- 4MP Süper Yüksek Çözünürlük ve IR Gece Görüşü
- İnsan ve Araç Sınıflandırması
- Akıllı Algılama
- Akıllı Video İyileştirme Teknolojisi
- Dahili Mikrofon
- IP67 Su Geçirmez
- H.265+ Sıkıştırma Teknolojisi
KAMERA
Görüntü Algılayıcı 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Aydınlatma Color: 0.01 Lux; 0 Lux with IR
Gündüz/Gece Mekanizması IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture • 2.8 mm: F2. 2
• 4 mm: F2.0
• 6 mm: F2.0
FOV • 2.8 mm:
Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°
• 4 mm:
Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°
• 6 mm:
Horizontal FOV: 49.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7°
Lens Mount M12
DORI Distance • 2.8 mm:
Detect: 60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)
• 4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
• 6 mm:
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)
Angle Adjustment (Manual)
Range • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VİDEO
Max. Resolution 2560 × 1440
Main Stream • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
640x480, 352x288, 320x240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
SES
Sesli İletişim N/A
Ses Girişi Yes
Ses Çıkışı N/A
Ses Sıkıştırma Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
AĞ
Protokol • TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Güvenlik Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM VE DURUM YÖNETİMİ
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage Message Push
Linkage Method N/A
Output Notification Message Push
ARAYÜZLER
Ağ Arayüzü 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button N/A
Power DC Power Port
On-board Storage N/A
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker N/A
Audio N/A
GENEL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Paket İçeriği • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Plastic
Net Weight 0.28 Kg
Gross Weight 0.43 Kg
Power Supply • 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 5.5 W
Protection IP67 Waterproof
Product Dimensions (L x W x H) 73.40 × 188.03 × 71.55 mm (2.89 × 7.40 × 2.82 in)
Sertifikasyon CE, NTRA, VCCI, BSMI
Ek sürüm bilgisi için lütfen destek sayfasına gidin.
